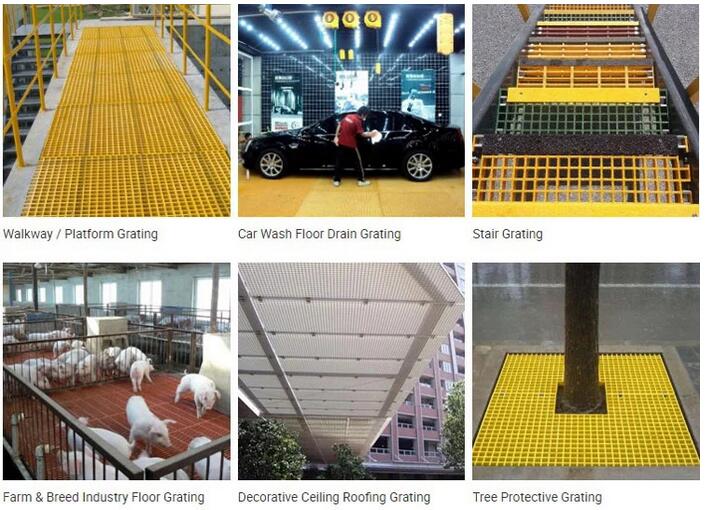

FRP Molded Grating is a versatile structural panel made with high-strength E-Glass roving and thermosetting resin. It is casted and formed in a special metal mold, resulting in a lightweight, yet durable product. With exceptional properties such as corrosion resistance, fire resistance, and anti-skid capabilities, FRP Molded Grating finds applications in various industries including oil, power engineering, and water/waste water treatment. It serves as an ideal choice for working floors, stair treads, and trench covers in corrosive environments. Our product has undergone rigorous third-party testing, ensuring superior fire and mechanical performance. With a global presence and a solid reputation, our FRP Molded Grating is highly sought after.

H50 Grp Grid Flooring: Strong And Lightweight.

FRP grating can be installed using different methods, such as mechanical fastening or adhesive bonding. It can be cut and customized on-site using standard tools, allowing for easy installation and modifications to fit specific project requirements.

Fiber Reinforced Polymer (FRP) is a composite material made of a polymer matrix reinforced with fibers. The fibres are usually glass, carbon, aramid, or basalt. Rarely, other fibres such as paper or wood or asbestos have been used. The polymer is usually an epoxy, vinylester or polyester thermosetting plastic, and phenol formaldehyde resins are still in use. FRPs are commonly used in the aerospace, automotive, marine, construction industries and ballistic armor.

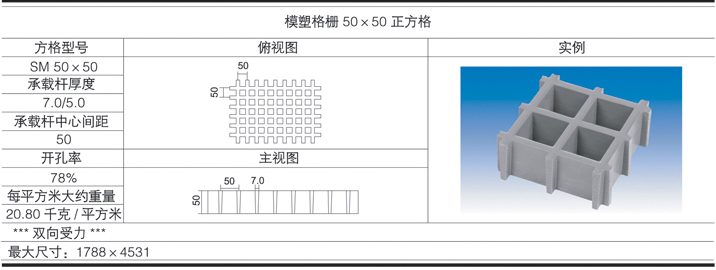

Molded grating load deflection tables

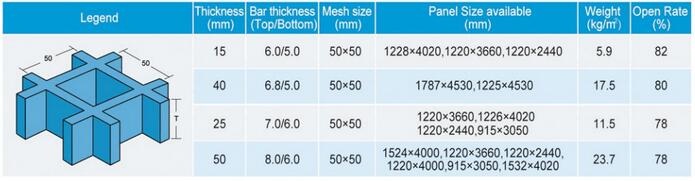

Size of FRP grating

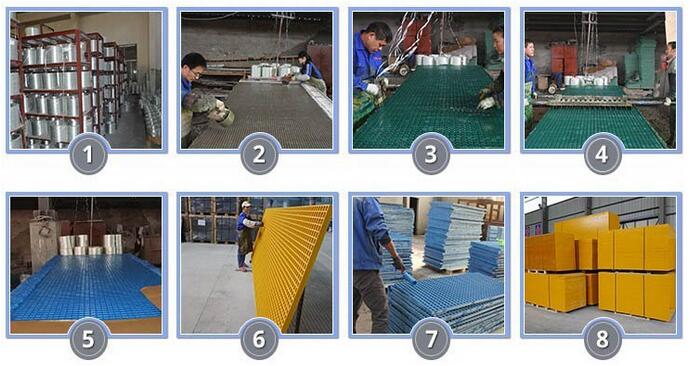

Molded grating process:

FRP grating, also known as fiberglass reinforced plastic grating, is manufactured by laying continuous glass fibers in the mold in the direction of vertical and horizontal, and thoroughly wetted out with resin, layer by layer. This process creates a strong and durable panel that offers excellent corrosion resistance and bi-directional strength. After the weaving process is completed, the panel is cured by heating it in the mold. Once cured, the panel is ejected from the mold and is ready for use. FRP grating is available in various types, including pultruded fiberglass grating, grp grid flooring, and mini mesh grating. These different types offer specific features and benefits, making them suitable for a wide range of applications.

Packing & Delivery
