Breathable Building Membrane 80gsm
- Price:Negotiable
- Description:Breathable building membrane is a material used to improve the energy efficiency and comfort of buildings.
Roofing breathable membrane, on the other hand, is specifically designed for use on roofs. It provides a protective layer between the roof covering and the underlying structure. Similar to the breathable building membrane, it allows moisture vapor to escape from the roof, preventing the accumulation of moisture and potential damage. It also serves as a waterproofing barrier, keeping the roof structure dry and protecting it from leaks.

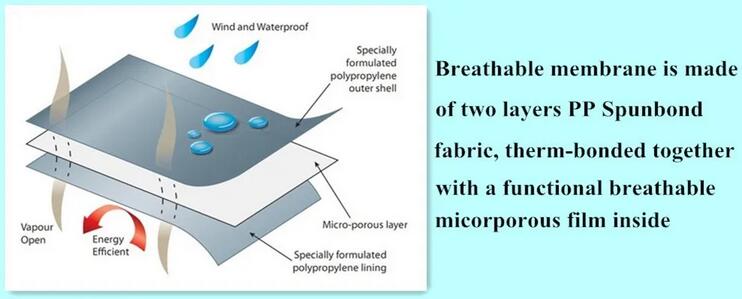

Both the breathable building membrane and the roofing breathable membrane are typically made of synthetic materials, such as polypropylene, and have multiple layers. These layers are designed to be water-resistant and breathable, allowing moisture to escape while preventing water infiltration. The membranes are durable and provide long-lasting protection to the building or roof.
|
No. |
Characterictics |
Breathable Membrane |
Breathable Membrane |
Breathable Membrane |
|
|
1 |
Weight |
80 |
100 |
120 |
|
|
2 |
quantity of layers |
3 layers |
3 layers |
3 layers |
|
|
3 |
Tensile Strength |
MD |
120N |
140N |
160N |
|
Tensile Strength |
CD |
80N |
100N |
120N |
|
|
4 |
Moisture Vapor Transmission (BS3117) |
1000-2000 gr/m2/24hours |
1000-2000 gr/m2/24hours |
1000-2000 gr/m2/24hours |
|
|
5 |
Water-resistant (water column)Hydrostatic Head |
not less 1000 mm |
not less 1000 mm |
not less 1000 mm |
|
|
6 |
UV resistance |
3 months |
3 months |
3 months |
|
|
7 |
Temperature range |
-60C +80C |
-60C+80C |
-60C +80C |
|
|
8 |
Fire resistance DIN 4102 |
E |
E |
E |
|
|
9 |
Roll Width |
1,5m |
1,5m |
1,5m |
|
|
10 |
Roll Length |
50m |
50m |
50m |
|
|
11 |
Quantity of rolls on pallets in 40HQ |
2708 |
2167 |
1806 |
|
|
12 |
COLOR |
|
blue or white |
blue or white |
blue or white |
Waterproof and breathable building membrane, also known as house wrap, is a crucial component in construction. It acts as a protective layer, resembling comfortable clothing for a house. This membrane effectively keeps rain and condensate water away from the wall insulation, preventing any potential damage. The distinguishing feature of this membrane is its ability to allow moisture to pass through, making it breathable. This ensures that any moisture trapped within the walls can escape, preventing the growth of mold and maintaining a healthy indoor environment.

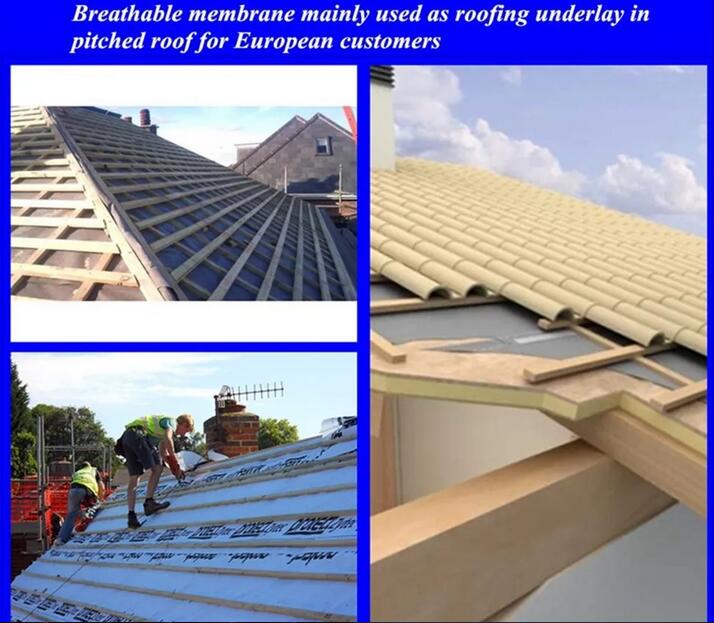

Similarly, roofing breathable membrane is an essential component in roofing systems. It functions as a barrier against water infiltration while allowing moisture vapor to escape. This membrane is designed to keep the roof dry and free from damage caused by condensation or leaks. By allowing moisture to pass through, it prevents the accumulation of moisture within the roof structure, preserving its integrity and prolonging its lifespan.
80gsm Micro-Porous Breather Polypropylene Laminated Non-Woven Membrane For Wall And Roof
Advantages:
Excellent performance at water resistance
Particular function of water vapor permeability
Good performance at UV resistant for 3 months
They are much lighter than bitumen felts, suitable for construction in different condition
They have excellent tear and nail strength, with good low temperature flexibility
100% recyclable
Breather membrane, another name for breathable membrane, is a versatile material used in various applications, including construction. Its primary function is to provide a protective layer that allows moisture vapor to escape while preventing the entry of external moisture. This membrane acts as a breathable barrier, ensuring that buildings remain dry and well-ventilated. It is especially beneficial in climates with high humidity, as it helps regulate moisture levels and prevents the growth of mold or rot within the building envelope.
Overall, breathable building membrane, roofing breathable membrane, and breather membrane are essential components in construction. They offer both waterproofing and breathability, ensuring the longevity and integrity of buildings while maintaining a comfortable and healthy indoor environment.
