Six Sector Strand Wire Rope 6VX19+FC

Surface treatment: ungalvanized and galvanized

Standard: AISI, ASTM, GB, JIS, DIN, EN

Construction: 6VX19+FC

Diameter: 20mm to 52mm

Tensile strength: 1570N/mm2 1670N/mm2 1770N/mm2 1870N/mm2 1960N/mm2

Certificate: ISO

Packaging: 500m/reel, 1000m/reel

Packaging: Export packaging

500m/reel, 1000m/reel, 2000m/reel, 5000m/reel, etc.

Inner packing:

Wooden reel and craft paper

Outer packing:

Wooden pallet or according to requests

6VX19+FC steel wire rope mainly used for is mainly used in the shaft, shaft sinking promotion, shaft cageway and ropeway bearing, inclined shaft hoisting, open pit mine slope hoisting, excavators, oil drilling, hoisting for blast furnace, various cable cars, double hoist up heavy equipment (such as smelting casting crane), electric ladder, port loading and unloading machine, crane and building with tower cranes, etc.

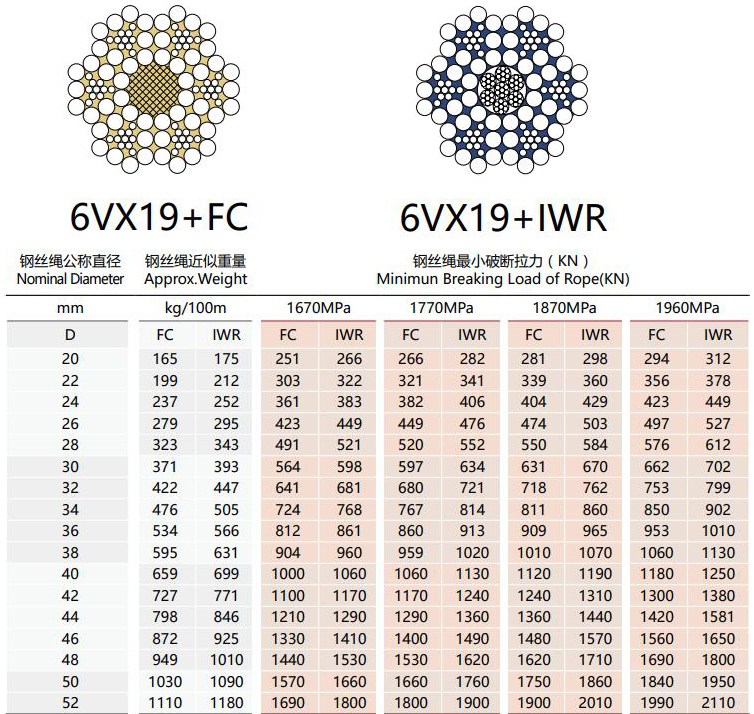

Steel Wire Rope 6VX19+FC Data:

Friendly reminder:
If overweight, abrasion, misused and maintain in wrong way.
the steel wire rope, sling can not be used.
For your safety and other plant.
Please care:
1. Before use steel wire rope, sling examine the abrasion and damage
2. It is forbidden to use abrasion, damage and discard steel wire rope, sling.
3. It is forbidden to overweight, wire rope, sling.
4. Consult the right way of using steel wire rope and sling relative regulation.
How to order:
In ordering steel wire rope, you are requested to give us complete information as specified below:
a.Purpose: For which rope will be used.
b.Size: Diameter of the rope in millimeter or inches
c.Construction: Number of strands, number of wires per strand and type of strand construction.
d.Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e.Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f.Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g.Grade of wire: Tensile strength of wires.
h.Breaking Load: Minimum or calculated breaking load in tones or pounds.
i.Lubrication: Whether lubrication is desired or not, and required lubricant.
j.Length: Length of wire rope.
k.Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l.Quantity: By number of coils or reels, by length or weight.m.
Remarks: Shipping marks and any other special requirement.
