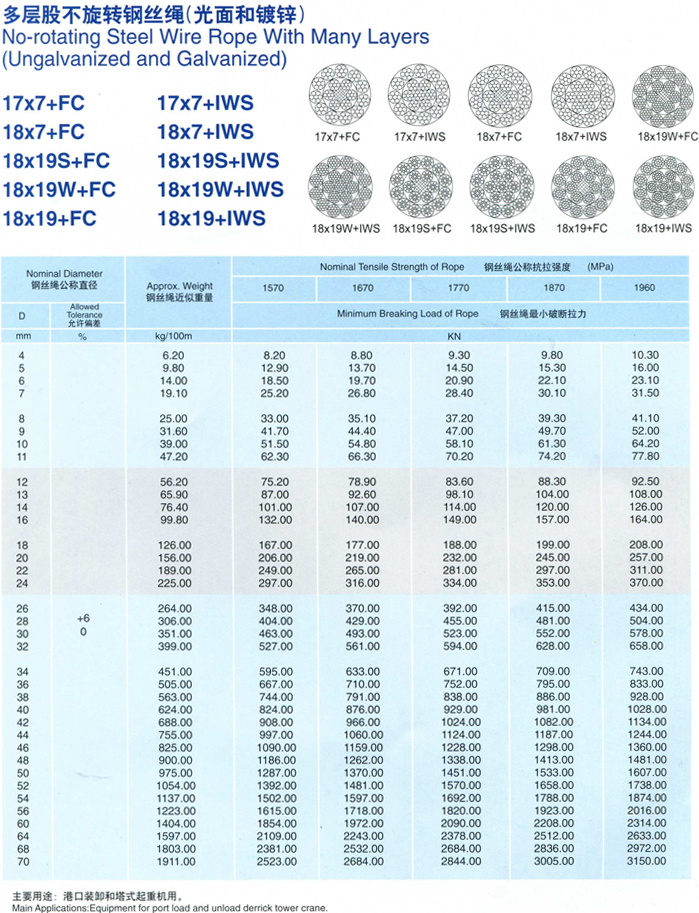

NO-ROTATING STEEL WIRE ROPE WITH MANY LAYERS (UNGALVANIZED AND GALVANIZED) 18x7+FC

Steel Grade:quality carbon steel ,60# ,65#,70#,72A,82B
Standard: AISI,ASTM,BS,DIN,GB,JIS
Wire Gauge:4 mm -70mm
Place of Origin:Jiangsu China (Mainland)
Type:Galvanized or Ungalvanized steel wire rope
Application:Rope
Alloy Or Not:Non-alloy
Special Use:Cold Heading Steel
Model Number:18x7+FC
Raw material :quality carbon steel ,60# ,65#,70#,72A,82B

Specifications
Quality control: ISO 9001
1)HS Code, 73121000
2) Main applications: for various kinds of lifting, hoisting and pulling etc.
3)Both GB/T 20118-2006 , DIN& EIPS are available.
4)In-time shipment, high quality and good after-sale service will be guaranteed.
5)Nominal l tensile strength: 1570 Mpa, 1670 Mpa 1770 Mpa, 1870 Mpa 1960 Mpa etc.
Galvanized steel wire rope
Size as the customer's request
Packaging Details wooden reel,plastic reel ,coil,pallet,wooden box,etc
Payment Terms T/T

Minimum Order Quantity 5 tons

Friendly reminder:
If overweight, abrasion, misused and maintain in wrong way.
the steel wire rope, sling can not be used.
For your safety and other plant.
Please care:
1. Before use steel wire rope, sling examine the abrasion and damage
2. It is forbidden to use abrasion, damage and discard steel wire rope, sling.
3. It is forbidden to overweight, wire rope, sling.
4. Consult the right way of using steel wire rope and sling relative regulation.
How to order:
In ordering steel wire rope, you are requested to give us complete information as specified below:
a.Purpose: For which rope will be used.
b.Size: Diameter of the rope in millimeter or inches
c.Construction: Number of strands, number of wires per strand and type of strand construction.
d.Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e.Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f.Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g.Grade of wire: Tensile strength of wires.
h.Breaking Load: Minimum or calculated breaking load in tones or pounds.
i.Lubrication: Whether lubrication is desired or not, and required lubricant.
j.Length: Length of wire rope.
k.Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l.Quantity: By number of coils or reels, by length or weight.m.
Remarks: Shipping marks and any other special requirement.
